# Quiz 11: Static Fluids

Physics & Astronomy

Q 1Q 1

You have a fluid in a beaker, but you need to increase the density of the contents of the beaker. How can you obtain higher density?
A)increase the fluid volume per unit mass
B)double the mass and volume of a fluid
C)halve the volume and mass of a fluid
D)increase the mass per unit volume

Free

Multiple Choice

D

Q 2Q 2

If P is a pressure, ñ density, g gravitational acceleration, and h height (or depth) of a fluid, where is the relationship P = ñgh applicable?
A)only in liquids
B)only in gases
C)only in gases of uniform density (ideal gases)
D)in any type of fluid with uniform density (ideal fluid)

Free

Multiple Choice

D

Q 3Q 3

If, in an unknown liquid, we measure pressure of 1.2 atm at 0.15 m depth, at what depth will the pressure measure 2.4 atm?
A)0.08 m
B)0.30 m
C)1.05 m
D)2.10 m

Free

Multiple Choice

C

Q 4Q 4

How far below the surface of water do you need to dive to double the atmospheric pressure? (Note: Atmospheric pressure is P

_{atm}= 1.01 × 10^{5}Pa, and density of water is ñ = 1000 kg/m^{3}.) A)1 m B)2 m C)10 m D)20 mFree

Multiple Choice

Q 5Q 5

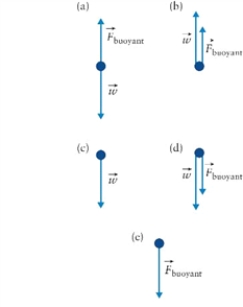

Figure 11.1
-Dolphins are sleeping at the bottom of a cove, floating low above the ocean floor. Which diagram in Fig. 11.1 shows the correct forces acting on the dolphins?
A)diagram (a)
B)diagram (b)
C)diagram (c)
D)diagram (d)

Free

Multiple Choice

Q 6Q 6

Which of these statements best describes the reason that fish can float in water?
A)The density of fish is higher than the density of water.
B)The weight of fish is higher than the weight of the same volume of water.
C)The density of fish is equal to the density of water.
D)The density of fish is lower than the density of water.

Free

Multiple Choice

Q 7Q 7

A body is immersed in a fluid. Which of these statements correctly describes buoyant force?
A)It is equal to the weight of the object.
B)It is equal to the weight of the fluid displaced by the object.
C)It is equal to the pressure of water below the object.
D)It is equal to the mass of the fluid displaced by the object.

Free

Multiple Choice

Q 8Q 8

A piece of wood is floating on the water. Which one of these statements correctly describes buoyant force?
A)It is zero.
B)It is equal to the weight of the wood.
C)It is equal to all the other forces acting on the wood, but is opposite in direction.
D)It is equal in magnitude but opposite in direction to the weight of the wood.

Free

Multiple Choice

Q 9Q 9

An iceberg has a density 917 kg/m

^{3}, and seawater has a density 1025 kg/m^{3}. What fraction of the iceberg is under the surface of the water? A)9.3% B)10.5% C)89.5% D)90.7%Free

Multiple Choice

Q 10Q 10

A bucket of water has some ice floating in it. When water freezes into ice, the ice becomes less dense than water, and about 9% of ice volume is above the water. When the ice melts, what happens to the level of water in the bucket?
A)The level will go up 9%.
B)The level will go down 9%.
C)The level will go down more than 9%.
D)The level will remain the same.

Free

Multiple Choice

Q 11Q 11

In a glass of water, an olive sits atop a cube of ice. When the olive falls and sinks in the water, what happens to the level of water in the glass?
A)The level will go up.
B)The level will go down.
C)The level will remain the same.
D)We need to know the mass of the olive to answer.

Free

Multiple Choice

Q 12Q 12

A metal cube fully submerged in water shows an apparent weight of 1.9 N. When completely submerged in acetone, its apparent weight is 2.2 N. What is the length of the side of the cube? (Note: The density of water is ñ

_{water}= 1000 kg/m^{3}and of acetone ñ_{acetone}= 784 kg/m^{3}.) A)5.0 × 10^{-2}m B)2.5 × 10^{-3}m C)1.4 × 10^{-4}m D)We need to know the mass of the cube to calculate the length.Free

Multiple Choice

Q 13Q 13

A rock is sinking in the water. Which one of these statements correctly describes the buoyant force?
A)It is zero.
B)It is equal to the weight of the wood.
C)It is equal to all the other forces acting on the wood, but opposite in direction.
D)It is equal in magnitude but opposite in direction of the weight of the wood.

Free

Multiple Choice

Q 14Q 14

A wooden log floats in a river (density 1000 kg/m

^{3}), with one-quarter above the water, carried toward the sea (density 1025 kg/m^{3}) by the river current. What will be the change in the percentage of the volume of log above water when it comes to the sea? A)The log will go up 2%. B)The log will go down 2%. C)The log will go up 27%. D)The log will go down 27%.Free

Multiple Choice

Q 15Q 15

A 0.25 kg balloon is filled with helium. If the balloon is a sphere with a radius of 4 m, what is the maximum number of standard men it can lift? (Note: The density of air is ñ

_{air}= 1.20 kg/m^{3}and of helium ñ_{helium}= 0.179 kg/m^{3}; standard man has a mass of 70 kg.) A)3 standard men B)4 standard men C)6 standard men D)38 standard menFree

Multiple Choice

Free

Multiple Choice

Q 17Q 17

What would the perimeter of each foot have to be to enable a standard man (70 kg) to stand on the water on both feet, held up by surface tension? (Note: Surface tension for water ó = 0.073 N/m.)
A)9.3 × 10

^{3}m B)4.7 × 10^{3}m C)9.6 × 10^{2}m D)4.8 × 10^{2}mFree

Multiple Choice

Q 18Q 18

An air bubble is 50 cm below the surface of a lake. In that case, we assume that the bubble has only one surface to generate surface tension. The gauge pressure inside the bubble is 6.0 × 10

^{3}Pa. What is radius of the bubble? (The density of the water is ñ_{H2O}= 1000 kg/m^{3}, and the surface tension is ó = 0.073 N/m.) A)2.6 × 10^{-4}m B)1.3 × 10^{-4}m C)6.0 × 10^{-7}m D)3.0 × 10^{-7}mFree

Multiple Choice

Q 19Q 19

What is the transmural ratio between a soap bubble of diameter D and another one with double the diameter, 2D?
A)The pressure in a bubble with diameter D is 2 times larger than in the 2D bubble.
B)The pressure in a bubble with diameter D is 2 times smaller than in the 2D bubble.
C)The pressure in a bubble with diameter D is 2ð times larger than in the 2D bubble.
D)The pressure in a bubble with diameter D is 2ð times smaller than in the 2D bubble.

Free

Multiple Choice

Q 20Q 20

What is the diameter of a capillary tube holding methanol, if the methanol rises to the same height as water in a 1 mm diameter tube? (Take 0° for contact angles, surface tension for water ó

_{H2O}= 0.073 N/m, and of methanol ó_{methanol}= 0.023 N/m. Density of water is ñ_{H2O}= 1000 kg/m^{3}, and of methanol ñ_{methanol}= 792 kg/m^{3}.) A)0.2 mm B)0.4 mm C)2.0 mm D)4.0 mmFree

Multiple Choice

Q 21Q 21

If no changes occur in a fluid, we say that it is in equilibrium. This statement includes all parameters of both macroscopic and microscopic motion of fluid molecules.

Free

True False

Q 22Q 22

The ideal stationary fluid is incompressible. This means you cannot deform it. If you act on such a fluid to deform it, it responds with a change in density.

Free

True False

Free

True False

Free

True False

Q 25Q 25

Buoyant force is sometimes directed upward and sometimes downward, depending on whether the object is sinking or floating.

Free

True False

Q 26Q 26

Major cargo ships sail up the Saint Lawrence Seaway from the Atlantic Ocean to the Great Lakes. If their ballast tanks are not adjusted, the ships will sink lower when they move from the ocean to the fresh-water seaway.

Free

True False

Q 27Q 27

A shark has to swim constantly all its life to prevent its body from sinking because it is heavier than other types of fish.

Free

True False

Q 28Q 28

A body sinking in a fluid with terminal velocity has a weight equal to the buoyant force and the force of friction.

Free

True False

Free

True False

Q 30Q 30

In a weightless environment such as on the International Space Station, water assumes the shape of a sphere.

Free

True False

Q 31Q 31

If the radius of a capillary tube decreases by 3 times, the water will rise to triple its original height.

Free

True False

Q 32Q 32

We can breathe in and out as long as the pressure between the outside and the inside of the lungs is lower than 0.05 times normal atmospheric pressure. How deep can we snorkel in sea water with density ñ = 1.025 × 10

^{3}kg/m^{3}, and in fresh water with density ñ = 1.0 × 10^{3}kg/m^{3}?Free

Essay

Q 33Q 33

Use Pascal's law to determine the height of Earth's atmosphere. Compare the result to the height of Mount Everest, h = 8848 m. The real height of the atmosphere is about 500 km. What assumption in Pascal's law is the reason for this difference in results? (Note: Atmospheric pressure is P

_{atm}= 1.01 × 10^{5}Pa, and density of air ñ = 1.2 kg/m^{3}.)Free

Essay

Q 34Q 34

If the height of a column of mercury supported by a blood pressure of 0.16 Pa is 120 mm, what height would a column of water be if you used a water manometer to measure the same pressure? (Note: The density of mercury is ñ = 1.36 × 10

^{4}kg/m^{3}, and the density of water is ñ = 10^{3}kg/m^{3}.)Free

Essay

Q 35Q 35

Nautilus, a mollusk inside a spiral shell, sometimes dives as deep as 400 m below the ocean surface during the day in order to avoid heating by the sun. By what factor is the pressure exerted on the shell at that depth larger than the pressure at 60 m depth, where nautilus usually feeds on plankton? (Note: The density of sea water is ñ = 1030 kg/m

^{3}.)Free

Essay

Q 36Q 36

Describe the position of a human body in which all the gauge pressures in the cardiovascular system are positive, and another position where you can expect negative gauge pressure to occur.

Free

Essay

Q 37Q 37

Figure 11.2: A hydraulic lift
-Hydraulic lift is shown in Fig. 11.2. The diameter of a large piston is 0.4 m. What is the diameter of a small piston if we can use a force of 147 N to lift a car of a mass 1500 kg?

Free

Essay

Q 38Q 38

The density of ice is 917 kg/m

^{3}, and the density of sea water is 1025 kg/m^{3}. A walrus climbs onto a piece of floating ice that has a volume of 15.7 m^{3}. How much does the walrus weigh if the ice is just submerged under the surface of water?Free

Essay

Q 39Q 39

What is the apparent weight of an object immersed in a vessel filled with water, in a weightless environment, such as the International Space station?

Free

Essay

Q 40Q 40

What percent of the weight of a ship's load has to be removed from a fully laden ship when it enters from the ocean into the St. Lawrence River? (Note: The density of sea water is ñ = 1.025 × 10

^{3}kg/m^{3}, and the density of fresh water is ñ = 10^{3}kg/m^{3}.)Free

Essay

Q 41Q 41

The fisher spider (Dolomedes triton), with mass of 0.7 g, walks on the water with eight legs. What length of each leg is in contact with the water so that the spider stays on the surface? Ignore the width of the leg; take into account only that each leg has two sides in contact with water. The surface tension of water is ó = 0.073 N/m.

Free

Essay

Q 42Q 42

Calculate the pressure in a water bubble of diameter 0.04 cm, and compare that with the pressure in the same diameter bubble of water-and-surfactant, which reduces surface tension by half. The surface tension of water is ó = 0.073 N/m.

Free

Essay
