Quiz 31: Fundamentals of Circuits
Physics & Astronomy
Q 1Q 1
As more resistors are added in parallel across a constant voltage source, the power supplied by the source
A) increases.
B) decreases.
C) does not change.
Free
Multiple Choice
A
Q 2Q 2
The figure shows three identical lightbulbs connected to a battery having a constant voltage across its terminals. What happens to the brightness of lightbulb 1 when the switch S is closed?
A) The brightness will increase momentarily then return to its previous level.
B) The brightness increases permanently.
C) The brightness will decrease momentarily then return to its previous level.
D) The brightness remains the same as before the switch is closed.
E) The brightness decreases permanently.
Free
Multiple Choice
B
Q 3Q 3
In the circuit shown in the figure, all the lightbulbs are identical. Which of the following is the correct ranking of the brightness of the bulbs?
A) B and C have equal brightness, and A is the dimmest.
B) A and B have equal brightness, and C is the dimmest.
C) A is brightest, C is dimmest, and B is in between.
D) A is the brightest, and B and C have equal brightness but less than A.
E) All three bulbs have the same brightness.
Free
Multiple Choice
D
Q 4Q 4
In the circuit shown in the figure, four identical resistors labeled A to D are connected to a battery as shown. S1 and S2 are switches. Which of the following actions would result in the GREATEST amount of current through resistor A?
A) closing both switches
B) closing S1 only
C) closing S2 only
D) leaving both switches open as shown.
Free
Multiple Choice
Q 5Q 5
A resistor is made out of a long wire having a length L. Each end of the wire is attached to a terminal of a battery providing a constant voltage V0. A current I flows through the wire. If the wire were cut in half, making two wires of length L/2, and both wires were attached to the battery (the end of both wires attached to one terminal, and the other ends attached to the other terminal), what would be the total current flowing through the two wires?
A) 4I
B) 2I
C) I
D) I/2
E) I/4
Free
Multiple Choice
Q 6Q 6
A light bulb is connected in the circuit shown in the figure with the switch S open. All the connecting leads have no appreciable resistance and the battery has no internal resistance. When we close the switch, which statements below accurately describe the behavior of the circuit? (There may be more than one correct choice.)
A) The brightness of the bulb will increase.
B) The brightness of the bulb will decrease.
C) The brightness of the bulb will not change.
D) The potential drop across R2 will decrease.
E) The potential drop across R2 will not change.
Free
Multiple Choice
Q 7Q 7
Two light bulbs, B1 and B2, are connected to a battery having appreciable internal resistance as shown in the figure. What happens to the brightness of bulb B1 when we close the switch S?
A) The brightness of B1 increases permanently.
B) The brightness of B1 decreases permanently.
C) The brightness of B1 does not change.
D) The brightness of B1 increases temporarily but gradually decreases back to its original brightness.
E) The brightness of B1 decreases temporarily but gradually increases back to its original brightness.
Free
Multiple Choice
Q 8Q 8

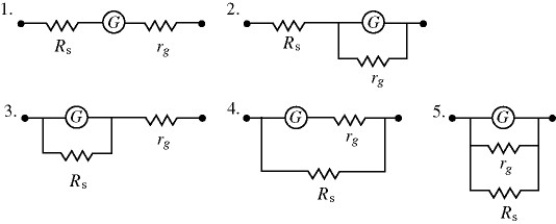

A galvanometer G has an internal resistance rg. An AMMETER is constructed by incorporating the galvanometer and an additional resistance Rs. Which one of the figures below is the most appropriate circuit diagram for the ammeter?
A) 1
B) 2
C) 3
D) 4
E) 5
Free
Multiple Choice
Q 9Q 9
A galvanometer G has an internal resistance rg. A VOLTMETER is constructed by incorporating the galvanometer and an additional resistance Rs. Which one of the figures below is the most appropriate circuit diagram for the voltmeter?
A) 1
B) 2
C) 3
D) 4
E) 5
Free
Multiple Choice
Q 10Q 10
An RC circuit is connected across an ideal DC voltage source through an open switch. The switch is closed at time t = 0 s. Which of the following statements regarding the circuit are correct? (There may be more than one correct choice.)
A) The capacitor charges to its maximum value in one time constant and the current is zero at that time.
B) The potential difference across the resistor and the potential difference across the capacitor are always equal.
C) The potential difference across the resistor is always greater than the potential difference across the capacitor.
D) The potential difference across the capacitor is always greater than the potential difference across the resistor
E) Once the capacitor is essentially fully charged, there is no appreciable current in the circuit.
Free
Multiple Choice
Q 11Q 11
A light bulb is connected in the circuit shown in the figure with the switch S open and the capacitor uncharged. The battery has no appreciable internal resistance. Which one of the following graphs best describes the brightness B of the bulb as a function of time t after closing the switch?
A) 1
B) 2
C) 3
D) 4
E) 5
Free
Multiple Choice
Q 12Q 12
A 5.0-Ω resistor and a 9.0-Ω resistor are connected in parallel. A 4.0-Ω resistor is then connected in series with this parallel combination. An ideal 6.0-V battery is then connected across the series-parallel combination of the three resistors. What is the current through
(a) the 4.0-Ω resistor?
(b) the 5.0-Ω resistor?
(c) the 9.0-Ω resistor?
Free
Essay
Q 13Q 13
For the circuit shown in the figure, determine the current in
(a) the 1.0-Ω resistor.
(b) the 3.0-Ω resistor.
(c) the 4.0-Ω resistor.
Free
Essay
Q 14Q 14
A 4.00-Ω resistor, an 8.00-Ω resistor, and a 24.0-Ω resistor are connected together.
(a) What is the maximum resistance that can be produced using all three resistors?
(b) What is the minimum resistance that can be produced using all three resistors?
(c) How would you connect these three resistors to obtain a resistance of 10.0 Ω?
(d) How would you connect these three resistors to obtain a resistance of 8.00 Ω?
Free
Essay
Q 15Q 15
Thirteen resistors are connected across points A and B as shown in the figure. If all the resistors are accurate to 2 significant figures, what is the equivalent resistance between points A and B?
A) 4.0 Ω
B) 6.0 Ω
C) 8.0 Ω
D) 10 Ω
E) 12 Ω
Free
Multiple Choice
Q 16Q 16
Two unknown resistors are connected together. When they are connected in series their equivalent resistance is 15 Ω. When they are connected in parallel, their equivalent resistance is 3.3 Ω. What are the resistances of these resistors?
Free
Short Answer
Q 17Q 17

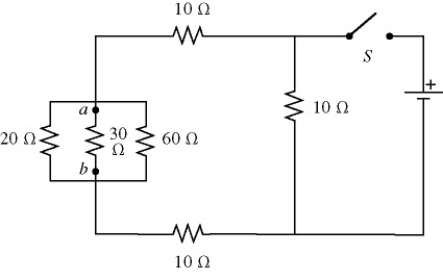

In the circuit shown in the figure, an ideal ohmmeter is connected across ab with the switch S open. All the connecting leads have negligible resistance. The reading of the ohmmeter will be closest to
A) 7.5 Ω.
B) 10 Ω.
C) 30 Ω.
D) 40 Ω.
E) 60 Ω.
Free
Multiple Choice
Q 18Q 18
Three resistors having resistances of 4.0 Ω, 6.0 Ω, and 10.0 Ω are connected in parallel. If the combination is connected in series with an ideal 12-V battery and a 2.0-Ω resistor, what is the current through the 10.0-Ω resistor?
A) 0.59 A
B) 2.7 A
C) 6.4 A
D) 11.2 A
E) 16 A
Free
Multiple Choice
Q 19Q 19
Three resistors are connected across an ideal 2.0-V DC battery as shown in the figure.
(a) At what rate does the battery supply energy to the resistors?
(b) At what rate is heat produced in the 6.0-Ω resistor?
Free
Essay
Q 20Q 20

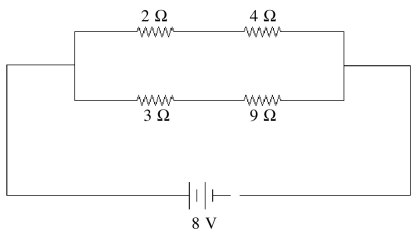

Four resistors are connected across an 8-V DC battery as shown in the figure. The current through the 9-Ω resistor is closest to
A) 1 A.
B) 0.7 A.
C) 0.5 A.
D) 0.9 A.
E) 2 A.
Free
Multiple Choice
Q 21Q 21
When four identical resistors are connected to an ideal battery of voltage V = 10 V as shown in the figure, the current I is equal to 0.20 A. What is the value of the resistance R of the resistors?
A) 20 Ω
B) 40 Ω
C) 30 Ω
D) 50 Ω
E) 10 Ω
Free
Multiple Choice
Q 22Q 22
Two identical resistors of resistance R = 24 Ω and a variable resistor Rx are connected to an ideal battery of voltage V as shown in the figure. What should be the value of the variable resistance Rx to make the voltage across the two parallel resistors equal to .
A) 4.0 Ω
B) 24 Ω
C) 8.0 Ω
D) 16 Ω
E) 40 Ω
Free
Multiple Choice
Q 23Q 23
For the circuit shown in the figure, I = 0.50 A and R = 12 Ω. What is the value of the emf ε?
A) 18 V
B) 24 V
C) 6.0 V
D) 12 V
E) 48 V
Free
Multiple Choice
Q 24Q 24
For the circuit shown in the figure, the current in the 8-Ω resistor is 0.50 A, and all quantities are accurate to 2 significant figures. What is the current in the 2-Ω resistor?
A) 2.25 A
B) 0.75 A
C) 4.5 A
D) 9.5 A
E) 6.4 A
Free
Multiple Choice
Q 25Q 25
For the circuit shown in the figure, all quantities are accurate to 3 significant figures. What is the power dissipated in the 2-Ω resistor?
A) 5.33 W
B) 8.0 W
C) 6.67 W
D) 2.67 W
E) 3.56 W
Free
Multiple Choice
Q 26Q 26
When a 20.0-ohm resistor is connected across the terminals of a 12.0-V battery, the voltage across the terminals of the battery falls by 0.300 V. What is the internal resistance of this battery?
A) 3.60 Ω
B) 1.56 Ω
C) 0.98 Ω
D) 0.30 Ω
E) 0.51 Ω
Free
Multiple Choice
Q 27Q 27
What is the maximum current that can be drawn from a 1.50-V battery with an internal resistance of 0.30 ohm?
A) 2.5 A
B) 5.0 A
C) 0.45 A
D) 0.20 A
E) 4.5 A
Free
Multiple Choice
Q 28Q 28
When a 100-Ω resistor is connected across the terminals of a battery of emf ε and internal resistance r, the battery delivers 0.794 W of power to the 100-Ω resistor. When the 100-Ω resistor is replaced by a 200-Ω resistor, the battery delivers 0.401 W of power to the 200-Ω resistor. What are the emf and internal resistance of the battery?
A) ε = 10.0 V, r = 5.02 Ω
B) ε = 4.50 V, r = 4.00 Ω
C) ε = 9.00 V, r = 2.04 Ω
D) ε = 9.00 V, r = 1.01 Ω
E) ε = 12.0 V, r = 6.00 Ω
Free
Multiple Choice
Q 29Q 29
For the circuit shown in the figure, what current does the ideal ammeter read?
A) 0.033 A
B) 0.078 A
C) 0.23 A
D) 0.12 A
Free
Multiple Choice
Q 30Q 30
For the circuit shown in the figure, what is the current through resistor R1?
A) 0.071 A
B) 0.13 A
C) 0.029 A
D) 0.016 A
Free
Multiple Choice
Q 31Q 31
For the circuit shown in the figure, what is the current through resistor R3?
A) 0.043 A
B) 1.5 A
C) 0.028 A
D) 0.086 A
Free
Multiple Choice
Q 32Q 32
For the circuit shown in the figure, determine the current in
(a) the 7.0-Ω resistor.
(b) the 8.0-Ω resistor.
(c) the 4.0-Ω resistor.
Free
Essay
Q 33Q 33
For the circuit shown in the figure, all quantities are accurate to 2 significant figures. What is the value of the current I1?
A) 0.32 A
B) 0.11 A
C) 0.29 A
D) 0.61 A
E) 0.89 A
Free
Multiple Choice
Q 34Q 34
A multiloop circuit is shown in the figure. It is not necessary to solve the entire circuit. The current I2 is closest to
A) -6 A.
B) 6 A.
C) 8 A.
D) -8 A.
E) zero.
Free
Multiple Choice
Q 35Q 35
A multiloop circuit is shown in the figure. It is not necessary to solve the entire circuit. Compared to the polarity shown in the figure, the emf ε1 is closest to
A) -5 V.
B) 5 V.
C) 45 V.
D) 51 V.
E) -51 V.
Free
Multiple Choice
Q 36Q 36
A multiloop circuit is shown in the figure. Some circuit quantities are not labeled. It is not necessary to solve the entire circuit. The current I1 is closest to
A) zero.
B) +0.2 A.
C) +0.4 A.
D) -0.2 A.
E) -0.4 A.
Free
Multiple Choice
Q 37Q 37
A multiloop circuit is shown in the figure. Some circuit quantities are not labeled. It is not necessary to solve the entire circuit. The emf ε is closest to
A) +3 V.
B) +19 V.
C) -3 V.
D) -10 V.
E) -1 V.
Free
Multiple Choice
Q 38Q 38
A multiloop circuit is shown in the figure. Some circuit quantities are not labeled. It is not necessary to solve the entire circuit. The current I2 is closest to
A) +0.1 A.
B) +0.3 A.
C) +0.5 A.
D) -0.1 A.
E) -0.3 A.
Free
Multiple Choice
Q 39Q 39
Consider the circuit shown in the figure. Note that two currents are shown. Calculate the emfs ε1 and ε3.
Free
Essay
Q 40Q 40
A galvanometer coil having a resistance of 20 Ω and a full-scale deflection at 1.0 mA is connected in series with a 4980 Ω resistance to build a voltmeter. What is the maximum voltage that this voltmeter can read?
A) 3.0 V
B) 1.0 V
C) 50 V
D) 5.0 V
E) 10 V
Free
Multiple Choice
Q 41Q 41
A galvanometer has an internal resistance of 100 Ω and deflects full-scale at 2.00 mA. What size resistor should be added to the galvanometer to convert it to a milliammeter capable of reading up to 4.00 mA, and how should this resistor be connected to the galvanometer?
A) 50.0 Ω in series with the galvanometer
B) 50.0 Ω in parallel with the galvanometer
C) 75.0 Ω in parallel with the galvanometer
D) 100 Ω in series with the galvanometer
E) 100 Ω in parallel with the galvanometer
Free
Multiple Choice
Q 42Q 42
A galvanometer has a coil with a resistance of 24.0 Ω, and a current of 180 μA causes it to deflect full scale. If this galvanometer is to be used to construct an ammeter that can read up to 10.0 A, what shunt resistor is required?
A) 123 µΩ
B) 234 µΩ
C) 342 µΩ
D) 432 µΩ
E) 423 µΩ
Free
Multiple Choice
Q 43Q 43
A galvanometer has an internal resistance of 100 Ω and deflects full-scale at a current of 2.00 mA. What size resistor should be added to it to convert it to a millivoltmeter capable of reading up to 400 mV, and how should this resistor be connected to the galvanometer?
A) 50.0 Ω in series with the galvanometer
B) 50.0 Ω in parallel with the galvanometer
C) 75.0 Ω in parallel with the galvanometer
D) 100 Ω in series with the galvanometer
E) 100 Ω in parallel with the galvanometer
Free
Multiple Choice
Q 44Q 44
A galvanometer with a resistance of 40.0 Ω deflects full scale at a current of 2.0 mA. What resistance should be used with this galvanometer in order to construct a voltmeter that can read a maximum of 50 V?
A) 25 kΩ
B) 27 kΩ
C) 29 kΩ
D) 31 kΩ
E) 35 kΩ
Free
Multiple Choice
Q 45Q 45
In the circuit shown in the figure, two 360.0-Ω resistors are connected in series with an ideal source of emf. A voltmeter with internal resistance of 6350 Ω is connected across one of the resistors and reads 3.23 V. Find the emf of the source.
Free
Short Answer
Q 46Q 46
A 6.0-μF capacitor is connected in series with= 5.0 MΩ resistor, and this combination is connected across an ideal 15-V DC battery. What is the current in the circuit when the capacitor has reached 20% of its maximum charge?
A) 6.5 μA
B) 2.4 μA
C) 1.3 μA
D) 4.7 μA
E) 9.1 μA
Free
Multiple Choice
Q 47Q 47
A 4.0-mF capacitor is discharged through a 4.0-kΩ resistor. How long will it take for the capacitor to lose half its initial stored energy?
A) 9.2 s
B) 2.7 s
C) 10.2 s
D) 5.5 s
E) 1.6 s
Free
Multiple Choice
Q 48Q 48
An uncharged 1.0-μF capacitor is connected in series with a 23-kΩ resistor, an ideal 7.0-V battery, and an open switch. What is the voltage across the capacitor 11 ms after closing the switch?
A) 2.7 V
B) 1.6 V
C) 2.6 V
D) 0.62 V
Free
Multiple Choice
Q 49Q 49
A 4.0-μF capacitor that is initially uncharged is connected in series with a 4.0-kΩ resistor and an ideal 17.0-V battery. How much energy is stored in the capacitor 17 ms after the battery has been connected?
A) 250,000 nJ
B) 15,000 kJ
C) 25 µJ
D) 890 nJ
Free
Multiple Choice
Q 50Q 50
For the circuit shown in the figure, the switch S is initially open and the capacitor is uncharged. The switch is then closed at time t = 0. How many seconds after closing the switch will the energy stored in the capacitor be equal to 50.2 mJ?
A) 81 s
B) 65 s
C) 97 s
D) 110 s
E) 130 s
Free
Multiple Choice
Q 51Q 51
For the circuit shown in the figure, the switch S is initially open and the capacitor voltage is 80 V. The switch is then closed at time t = 0. What is the charge on the capacitor when the current in the circuit is 33 μA?
A) 1100 µC
B) 1000 µC
C) 960 µC
D) 890 µC
E) 830 µC
Free
Multiple Choice
Q 52Q 52
For the circuit shown in the figure, the switch S is initially open and the capacitor voltage is 80 V. The switch is then closed at time t = 0. How long after closing the switch will the current in the resistor be 7.0 µA?
A) 87 s
B) 95 s
C) 78 s
D) 69 s
E) 61 s
Free
Multiple Choice
Q 53Q 53
An uncharged 30.0-µF capacitor is connected in series with a 25.0-Ω resistor, a DC battery, and an open switch. The battery has an internal resistance of 10.0 Ω and the open-circuit voltage across its terminals is 50.0 V. The leads have no appreciable resistance. At time t = 0, the switch is suddenly closed.
(a) What is the maximum current through the 25.0-Ω resistor and when does it occur (immediately after closing the switch or after the switch has been closed for a long time)?
(b) What is the maximum charge that the capacitor receives?
(c) When the current in the circuit is 0.850 A, how much charge is on the plates of the capacitor?
Free
Essay
Q 54Q 54
The power rating of a 400-Ω resistor is 0.800 W.
(a) What is the maximum voltage that can be applied across this resistor without damaging it?
(b) What is the maximum current this resistor can draw without damaging it?
Free
Essay
Q 55Q 55
A 110-V hair dryer is rated at 1200 W. What current will it draw when operating from a 110-V electrical outlet?
A) 90 mA
B) 1.0 A
C) 5.0 A
D) 11 A
E) 14 A
Free
Multiple Choice
Q 56Q 56
A light bulb is connected to a 110-V source. What is the resistance of this bulb if it is a 100-W bulb?
A) 100 Ω
B) 8.0 mΩ
C) 6.0 mΩ
D) 120 Ω
E) 240 Ω
Free
Multiple Choice
Q 57Q 57
A certain electric furnace consumes 24 kW when it is connected to a 240-V line. What is the resistance of the furnace?
A) 1.0 kΩ
B) 10 Ω
C) 2.4 Ω
D) 0.42 Ω
E) 100 Ω
Free
Multiple Choice
Q 58Q 58
A 1500-W heater is connected to a 120-V line. How much heat energy does it produce in 2.0 hours?
A) 1.5 kJ
B) 3.0 kJ
C) 0.18 MJ
D) 11 MJ
E) 18 MJ
Free
Multiple Choice
Q 59Q 59
The resistivity of gold is 2.44 × 10-8 Ω ∙ m at room temperature. A gold wire that is 1.8 mm in diameter and 11 cm long carries a current of 170 mA. How much power is dissipated in the wire?
A) 0.030 mW
B) 0.0076 mW
C) 0.013 mW
D) 0.019 mW
E) 0.025 mW
Free
Multiple Choice
Q 60Q 60
A 400-W computer (including the monitor) is turned on for 8.0 hours per day. If electricity costs 10¢ per kWh, how much does it cost to run the computer annually for a typical 365-day year?
A) $120
B) $1200
C) $15
D) $17
E) $150
Free
Multiple Choice
Q 61Q 61
The voltage and power ratings of a particular light bulb, which are its normal operating values, are 110 V and 60 W. Assume the resistance of the filament of the bulb is constant and is independent of operating conditions. If the light bulb is operated with a current that is 50% of the current rating of the bulb, what is the actual power drawn by the bulb?
A) 10 W
B) 15 W
C) 20 W
D) 25 W
E) 30 W
Free
Multiple Choice
Q 62Q 62
The voltage and power ratings of a particular light bulb, which are its normal operating values, are 110 V and 60 W. Assume the resistance of the filament of the bulb is constant and is independent of operating conditions. If the light bulb is operated at a reduced voltage and the power drawn by the bulb is 36 W, what is the operating voltage of the bulb?
A) 66 V
B) 72 V
C) 78 V
D) 85 V
E) 90 V
Free
Multiple Choice
Q 63Q 63
The heater element of a particular 120-V toaster is a 8.9-m length of nichrome wire, whose diameter is 0.86 mm. The resistivity of nichrome at the operating temperature of the toaster is 1.3 × 10-6 Ω ∙ m. If the toaster is operated at a voltage of 120 V, how much power does it draw?
A) 720 W
B) 700 W
C) 750 W
D) 770 W
E) 800 W
Free
Multiple Choice
Q 64Q 64
The emf and the internal resistance of a battery are as shown in the figure. If a current of 8.3 A is drawn from the battery when a resistor R is connected across the terminals ab of the battery, what is the power dissipated by the resistor R?
A) 440 W
B) 700 W
C) 620 W
D) 530 W
E) 790 W
Free
Multiple Choice
Q 65Q 65
The emf and the internal resistance of a battery are as shown in the figure. When the terminal voltage Vab is equal to 17.4 V, what is the current through the battery, including its direction?
A) 6.8 A, from b to a
B) 8.7 A, from b to a
C) 6.8 A, from a to b
D) 8.7 A, from a to b
E) 16 A, from b to a
Free
Multiple Choice
Q 66Q 66
The emf and the internal resistance of a battery are shown in the figure. If a current of 7.8 A is established through the battery from b to a, what is the terminal voltage Vab of the battery?
A) -30 V
B) 80 V
C) 30 V
D) -80 V
E) zero
Free
Multiple Choice
Q 67Q 67
In the figure a current of 6.0 A is drawn from the battery. What is the terminal voltage Vab of the battery?
A) 0.00 V
B) +12 V
C) +24 V
D) -12 V
E) -24 V
Free
Multiple Choice
Q 68Q 68
In the figure, when the terminal voltage Vab of the battery is equal to 20 V, how much current passes through the battery, including its direction?
A) 4 A, from a to b
B) 5 A, from a to b
C) 6 A, from a to b
D) 4 A, from b to a
E) 5 A, from b to a
Free
Multiple Choice
