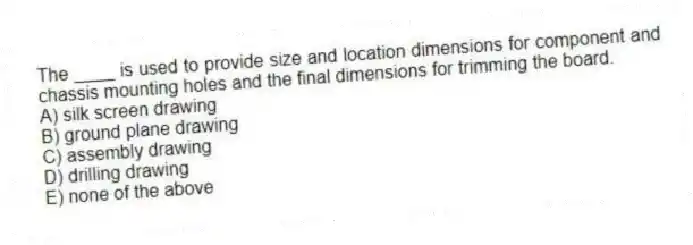

The ____ is used to provide size and location dimensions for component and chassis mounting holes and the final dimensions for trimming the board.
A) silk screen drawing
B) ground plane drawing
C) assembly drawing
D) drilling drawing
E) none of the above

Question

Quizplus · Accepted Answer

The drilling drawing is used to provide information about the location and size dimensions of the holes that will be drilled on the PCB for mounting components and the chassis. It also provides the final dimensions for trimming the board after the drilling process is complete. The silk screen drawing is used to provide component designations and other features that will be applied to the surface of the PCB. The ground plane drawing is used to provide information about the ground plane and its connections. The assembly drawing is used to show how the various components will be assembled together.
