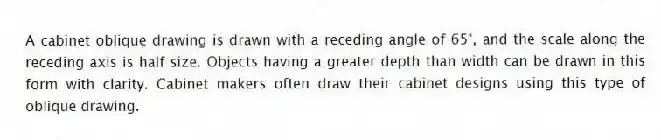

A cabinet oblique drawing is drawn with a receding angle of 65°, and the scale along the receding axis is half size. Objects having a greater depth than width can be drawn in this form with clarity. Cabinet makers often draw their cabinet designs using this type of oblique drawing.

Question

Quizplus · Accepted Answer

Cabinet oblique drawings typically use a receding angle of 45°, and the scale along the receding axis is often half size to avoid distortion, not 65° as stated.
