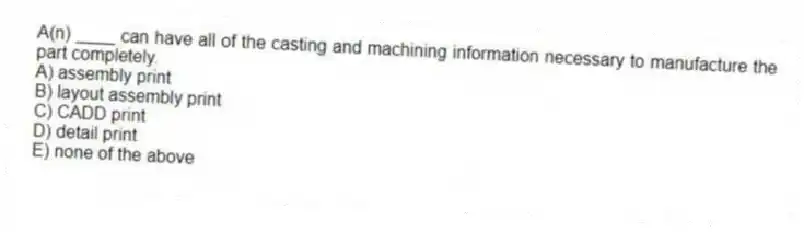

A(n) ____ can have all of the casting and machining information necessary to manufacture the part completely.
A) assembly print
B) layout assembly print
C) CADD print
D) detail print
E) none of the above

Question

Quizplus · Accepted Answer

A detail print is a type of engineering drawing that provides all of the information required to manufacture a single part, including dimensions, tolerances, materials, and finishing details. Detail prints also contain information on any machining, casting, or other manufacturing processes necessary to produce the part. Therefore, a detail print is the best choice for a drawing that includes all of the casting and machining information necessary to manufacture the part completely.
