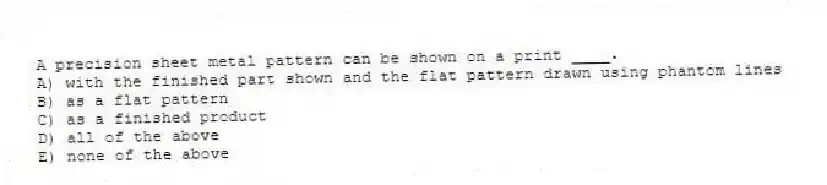

A precision sheet metal pattern can be shown on a print ____.
A) with the finished part shown and the flat pattern drawn using phantom lines
B) as a flat pattern
C) as a finished product
D) all of the above
E) none of the above

Question

Quizplus · Accepted Answer

All of the options provided are valid ways to show a precision sheet metal pattern on a print. A) represents a common method where both the finished part and its flat pattern are shown, with the flat pattern often depicted in phantom lines to differentiate it. B) and C) are straightforward representations of the pattern as a flat layout and as the final 3D product, respectively.
