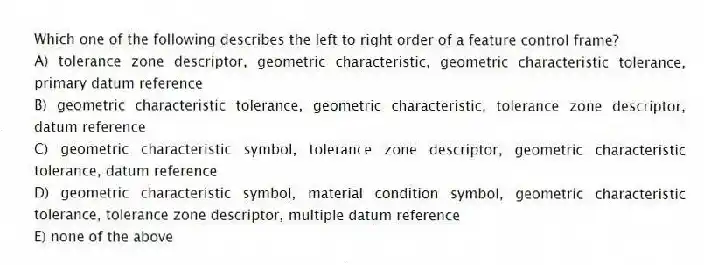

Which one of the following describes the left to right order of a feature control frame?
A) tolerance zone descriptor, geometric characteristic, geometric characteristic tolerance, primary datum reference
B) geometric characteristic tolerance, geometric characteristic, tolerance zone descriptor, datum reference
C) geometric characteristic symbol, tolerance zone descriptor, geometric characteristic tolerance, datum reference
D) geometric characteristic symbol, material condition symbol, geometric characteristic tolerance, tolerance zone descriptor, multiple datum reference
E) none of the above

Question

Quizplus · Accepted Answer

The correct order in a feature control frame is the geometric characteristic symbol, followed by the tolerance zone descriptor, then the geometric characteristic tolerance, and finally the datum reference.
