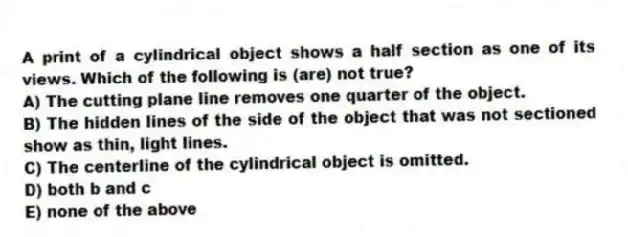

A print of a cylindrical object shows a half section as one of its views. Which of the following is (are) not true?
A) The cutting plane line removes one quarter of the object.
B) The hidden lines of the side of the object that was not sectioned show as thin, light lines.
C) The centerline of the cylindrical object is omitted.
D) both b and c
E) none of the above

Question

Quizplus · Accepted Answer

A) The cutting plane line removes one half of the object, not one quarter.
B) The hidden lines of the side of the object that was not sectioned show as thick, dark lines, not thin, light lines.
C) The centerline of the cylindrical object is omitted in a half section view.

A Print of a Cylindrical Object Shows a Half Section
