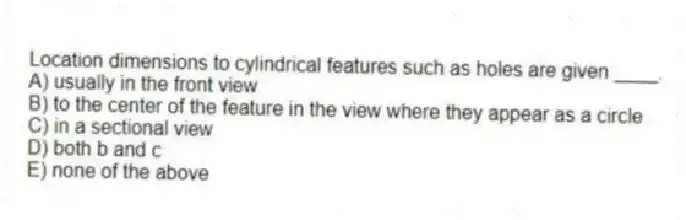

Location dimensions to cylindrical features such as holes are given ____.
A) usually in the front view
B) to the center of the feature in the view where they appear as a circle
C) in a sectional view
D) both b and c
E) none of the above

Question

Quizplus · Accepted Answer

Location dimensions to cylindrical features such as holes are given to the center of the feature in the view where they appear as a circle. This view can be the front view or any other view that shows the feature as a circle. In addition, location dimensions can also be given in a sectional view to show the relationship to other features. Therefore, both options (b and c) are correct.
