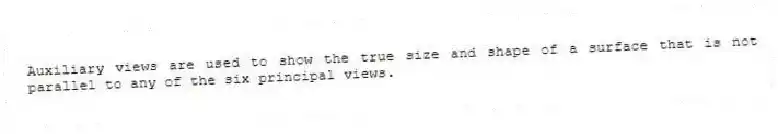

Auxiliary views are used to show the true size and shape of a surface that is not parallel to any of the six principal views.

Question

Quizplus · Accepted Answer

Auxiliary views are indeed used to show the true size and shape of surfaces that are not parallel to any of the six principal views. They are created by projecting the surface onto a plane that is perpendicular to it and then showing the resulting projection as a view. This allows for the accurate measurement and representation of angles and shapes that would be distorted in the standard views.

Auxiliary Views Are Used to Show the True Size and Shape
