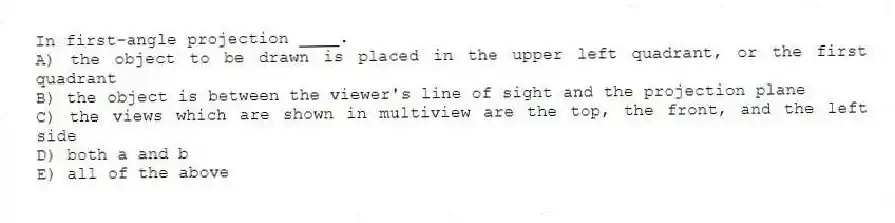

In first-angle projection ____.
A) the object to be drawn is placed in the upper left quadrant, or the first quadrant
B) the object is between the viewer's line of sight and the projection plane
C) the views which are shown in multiview are the top, the front, and the left side
D) both a and b
E) all of the above
Correct Answer:
Verified
Q74: Orthographic projection _.
A) is any projection of
Q75: A _ is a slightly angled corner
Q76: If you see the depth and height
Q77: A _ drawing represents the shape of
Q78: Cylindrical shapes appear round in one view
Q80: The _ is perpendicular to the plane
Q81: It is preferable for the removed view
Q82: When is a detail view used, how
Q83: Describe the reference arrow method for providing
Q84: When is a removed view used, how
