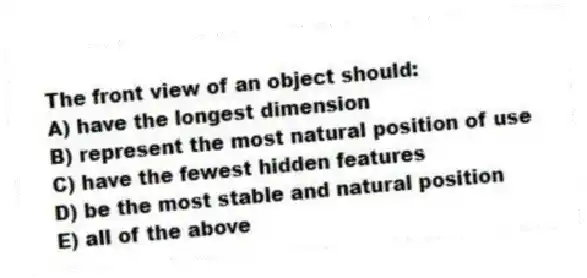

The front view of an object should:
A) have the longest dimension
B) represent the most natural position of use
C) have the fewest hidden features
D) be the most stable and natural position
E) all of the above

Question

Quizplus · Accepted Answer

The front view of an object in technical drawing is chosen based on several criteria: it should ideally show the object in its most natural position of use (B), minimize the number of hidden features to simplify the drawing (C), and depict the object in its most stable and natural orientation (D). While A is not a strict rule for choosing the front view, B, C, and D are generally accepted guidelines, making E (all of the above) the correct choice when considering the principles of technical drawing.
