Essentials Of Computer Organization And Architecture 4th Edition by Linda Null,Julia Lobur
النسخة 4الرقم المعياري الدولي: 978-1284074482Essentials Of Computer Organization And Architecture 4th Edition by Linda Null,Julia Lobur
النسخة 4الرقم المعياري الدولي: 978-1284074482 تمرين 11

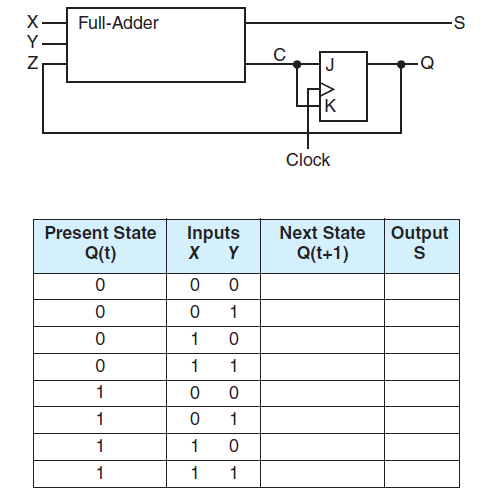

A sequential circuit has one flip-flop; two inputs, X and Y ; and one output, S. It consists of a full-adder circuit connected to a JK flip-flop, as shown. Fill in the truth table for this sequential circuit by completing the Next State and Output columns.
التوضيح
موثّق
موثّق
The Sum of the Full adder would be true ...
