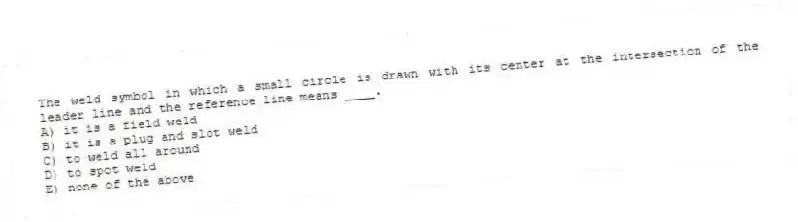

The weld symbol in which a small circle is drawn with its center at the intersection of the leader line and the reference line means ____.
A) it is a field weld
B) it is a plug and slot weld
C) to weld all around
D) to spot weld
E) none of the above

Question

Quizplus · Accepted Answer

The weld symbol with a small circle at the intersection of the leader line and reference line indicates a weld that is to be made all around the joint. This is also known as a circular weld or a 360-degree weld.
